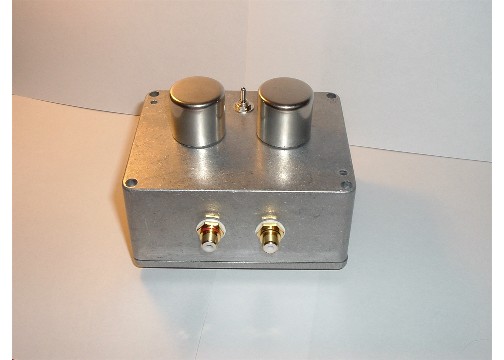

This is a stereo pair of CineMag CMQEE-3440A transformers built into a cast aluminum 4 1/2 inch wide x 3 1/2 deep x 2 1/4 tall enclosure. The total hight is about 3 1/2 inches tall when the top mounted transformers are included.
This Step Up Transformer features first class construction throughout using gold plated brass, Teflon insulated, female RCA jacks and a high quality Double Pole Double Throw switch which allows the user to select two different taps of the transformer for flexible loading. The loading impedance is 37.5 Ohms(with a 1:36 step up ratio) and 150 Ohms (with a 1:18 step up ratio), both of which allow this transformer to work with a wide variety of Moving Coil cartridges.
I personally have used the CineMag Model CM-QEE-3440A transformers with the following cartridges:
Denon DL-103 and DL-103R, Audio Technica OC9ML/II and an Ortofon MC-20 Super with excellent results. This is a very versatile transformer!
Inputs are on one side along with a grounding post, the outputs are on the opposite side. It is a nice, compact package that can be tucked away behind your turntable or proudly displayed at the front of your rack.
USPS Priority Shipping is included in the price for the lower 48 states, AK, HI, and Canada are going to have a slight additional charge.
I accept PayPal or Postal Money Orders for payment.
Thanks for looking!
|
