It's hard to beat the quality and cost of James transformers for your DIY tube
amplifier projects--if you can find them!

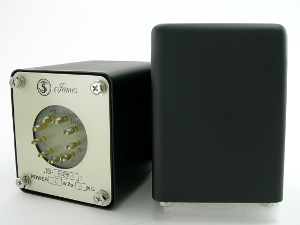

These James Audio JS-6228HS power output transformers are recommended for push-pull amplifiers built for tubes types that can run at 8K. Some of the many tube types that would work well with this versatile transformer include 6BQ5/EL84 and 6V6. 4k can be also achieved by connecting 8 ohm speakers to the 16 ohm taps or 4 ohm speakers to the 8 ohm taps. This creates even more tube type options, including 2A3 and 300B.
The folks who make these used to make Tango transformers which gives you an idea of the quality to expect.
Specifications
Current: 90mA, 20W
Primary impedance: 8K
Secondary impedance: 4 / 8 / 16 Ohms
Frequency Response: 5Hz ~ 100KHz (+/-1dB)
Material: Orientcore HiB

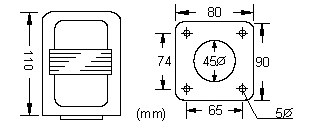

Dimensions: 110 x 90 x 80 mm
Weight: 2.5 Kg
This item is sold in pairs. Choose from black or champagne finishes.
